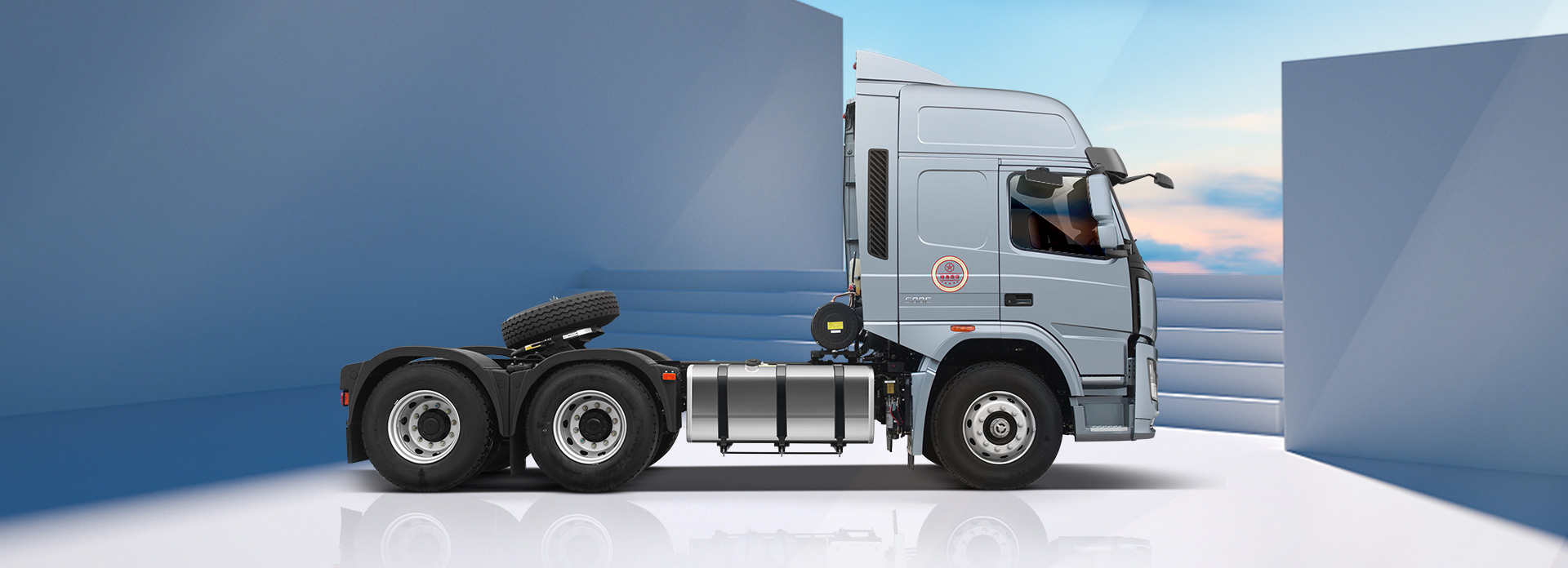

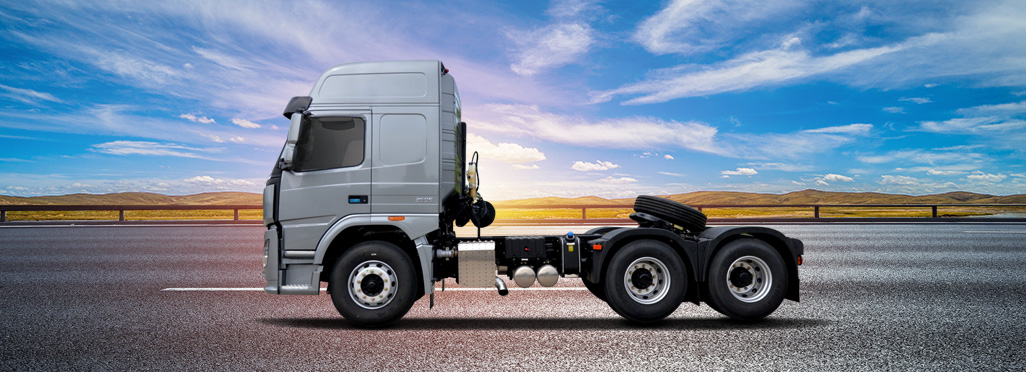

N8V series 6 × 4 tractor
Vehicle category |
Tractor truck |
||||||
Driving type |
6*4 |
||||||
Vehicle Model |
CGC4250D5DCCE |
CGC4250D5ECCD |
|||||
Vehicle dimension parameters |
Wheelbase |
3400+1350 |
|||||
Vehicle dimension ( L × W × H ) |
6995*2500*3430 |
6995*2500*3675 |
|||||
Wheel track ( front / rear )(mm) |
2030/1860/1860 |
||||||
Vehicle quality parameters |
Gross vehicle weight(kg) |
25000 |
|||||
Curb weight (kg) |
9090 |
9200 |
|||||
Design traction quality(kg) |
40000 |
||||||
Cabin |
Type |
N8V (3.0) high roof row semi tractor cab |
|||||
Engine |
Brand |
Weichai |
|||||
Model |
WP10.350E53 |
WP12.400E50 |
|||||
Max power (ps) |
350 |
400 |
|||||
Series |
EURO V |
||||||
Displacement (L) |
9.726 |
11.596 |
|||||
Rated rpm |
1900 |
||||||
Clutch |
Plate parameter (mm) |
∮430 |
|||||
Gearbox |
Brand |
Fast |
|||||
Model |
16JSD220TA |
||||||
Front leaf spring |
9 |
||||||
Rear leaf spring |
12 |
||||||
Tire |
Plate parameter (mm) |
12R22.5 18PR |
|||||
Quantity |
10 |
||||||
Frame |
External width (mm) |
1000-850 |
|||||
Stringer gross section(mm) |
300*80*(8+5) |
||||||
Fuel tank |
Specifications and Materials |
400L aluminum alloy |
|||||
Function configuration |
50#fifth wheel |
||||||
Optional configuration |
Air deflector of the cab |
